J Card Printing Spec.

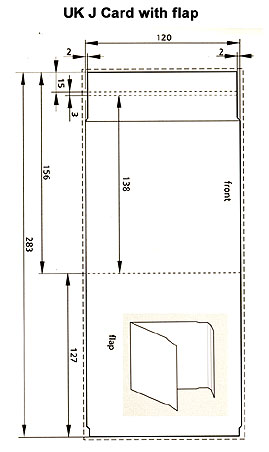

UK J Card Printing Spec Image

Bleed required 3mm.

The measurements given are exact and 3 mm bleed should be added on each edge to allow for trim.
When the artwork is trimmed, slight variations can occur so the 3 mm is there to to avoid a white line being shown on trimmed edges.

Finished Artwork Size Including Bleed.

The total dimensions including bleed for The above would therefore be:
Width = 289mm (3mm bleed left + 283 +3 mm bleed right)
Hight = 126mm ( 3mm bleed top + hight 120 + 3mm bleed bottom)

2mm Safe Rule.

No text or detail should be placed closer than 2 mm to trimmed edges or folds, this ensures no loss of detail etc in the folding, trimming process.
The spline is an exception as you only have 3mm space.
