DVD Booklet Printing Spec.

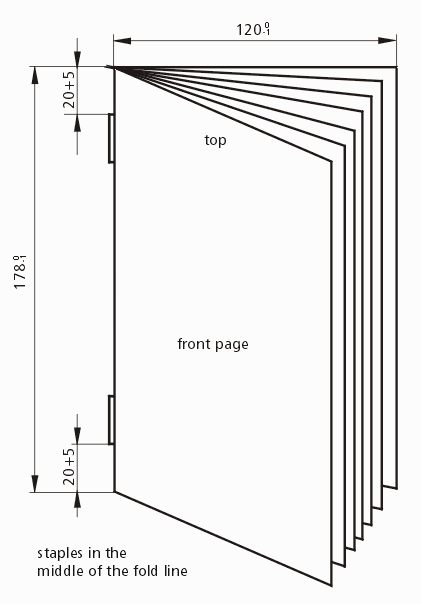

dvd booklet

Bleed required 3mm.

The measurements given are exact and 3 mm bleed should be added on each edge to allow for trim.
When the artwork is trimmed, slight variations can occur so the 3 mm is there to to avoid a white line being shown on trimmed edges.

Finished Artwork Size Including Bleed.

Exact trimmed width is 240mm (Width of page 1 + page 2) so simply add 3mm left & 3mm right to give a total image width of 246mm.

Exact trimmed height is 178mm.
Add 3mm top & 3mm bottom giving us 184mm in total.
So the measurements for the front cover including bleed would be
246mm by 184mm. Ok?
These should be laid out as Printers Pairs.

2 Page Booklet (One Sheet No Fold).

This would simply be one page of the above booklet.
Trimmed Width 120mm, Trimmed Hight 178mm.
Inc bleed = 126mm by 184mm

3mm Safe Rule.

No text or detail should be placed closer than 3 mm to trimmed edges or folds, this ensures no loss of detail etc in the folding, trimming process.
